The largest building models up to 25x23 cm²

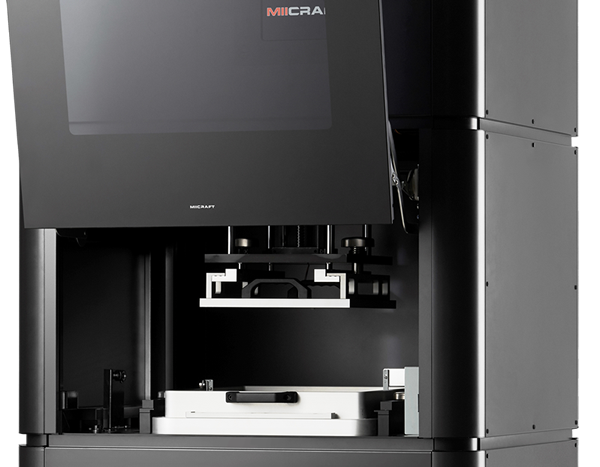

The Professional series have the largest printing platform among MiiCraft product lines and working with a printable volume up to 255x235x190 mm (125µm pixel size) and 250x140x190 mm (65µm pixel size). This series are driven by high resolution LED light engine with Digi-optical technology for faster printing speed and beautiful printing details, make it perfect for individualized mass production and Professional applications.
Features
The Professional series
- 4K Resolution: 3840 X 2160 pixels
- Up to 30um accuracy with a printable volume of 120x67x190 mm
- Open system: Compatible to diversified materials and 3rd parties
software

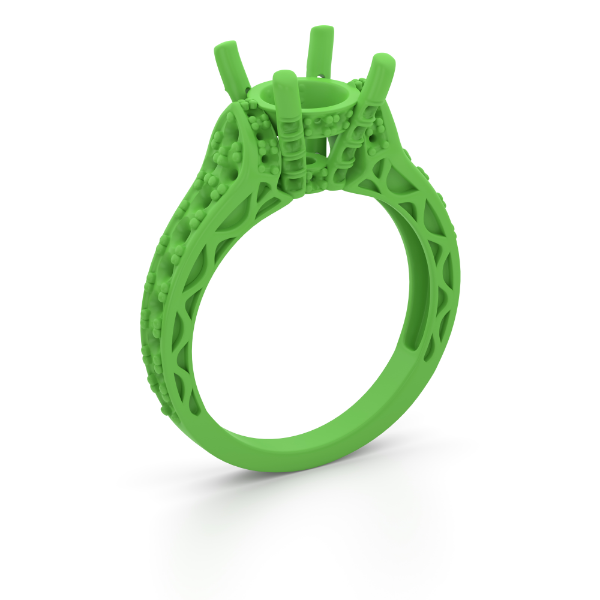

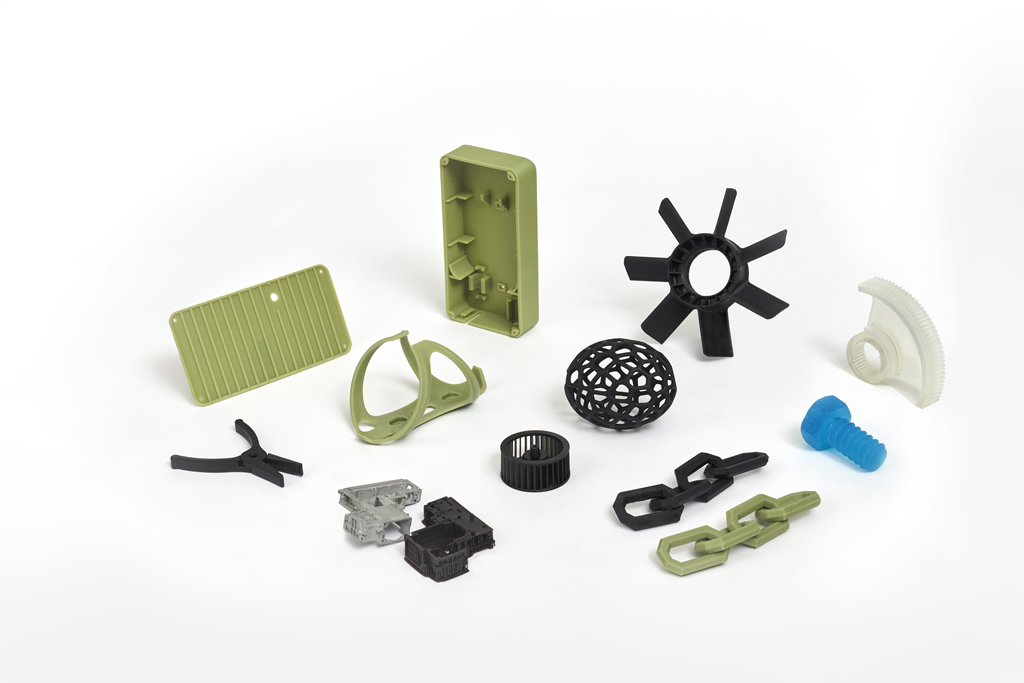

Real printing results reflect advantage of high resolution
Utilizes superior high resolution UV light engine to realize stunning printing details and smooth surface from small to big building size.
Specification
| MiiCraft Models | Professional 250 | Professional 120 | ||
|---|---|---|---|---|
| Building size (mm) | 250x140x190 | 120x67x190 | ||
| XY Resolution | 65 um | 30 um | ||
| Z-Layer Resolution | 6.25 μm to 500 μm | |||
| Type | 4K Ultra HD | 4K Ultra HD | ||
| Wavelength (LED) | 405nm/385nm/365nm | 405nm/385nm/365nm | ||
| I/O | Ethernet / USB / Power in, Adapter: 100~240V AC, 2A, 50Hz/60Hz | |||
| Size and Weight | 82x79x200 cm / 305kg | |||
Applications
Dental
Jewelry
Hearing Aid
Medical
Engineering
Manufacturing
Microfluidics
